Modeling

Auto Column​

  • Auto-generate columns

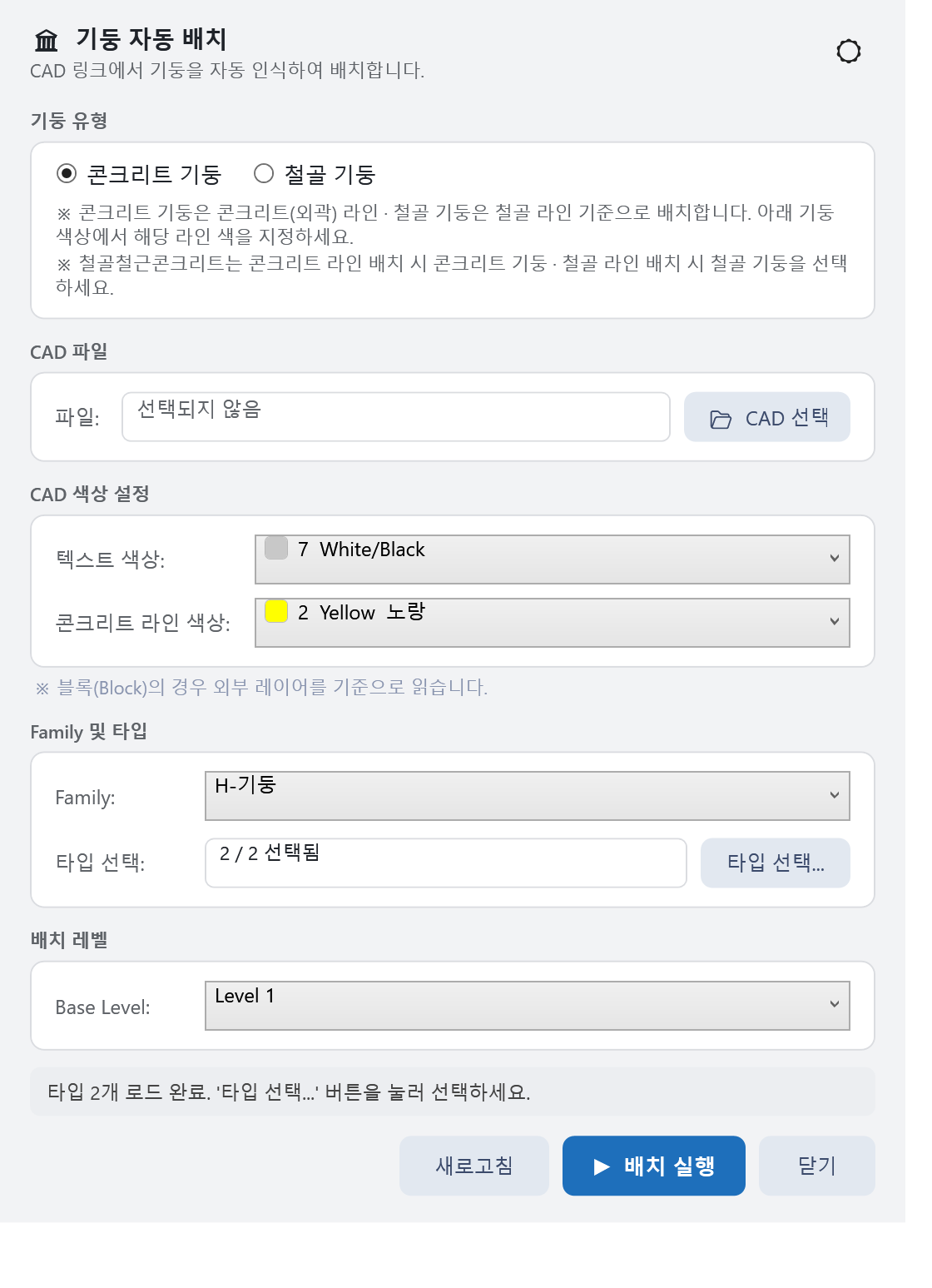

Auto Column

  1. Choose Concrete column / Steel column

*For SRC, choose one of the two

  1. Select a CAD file (Linked CAD only)

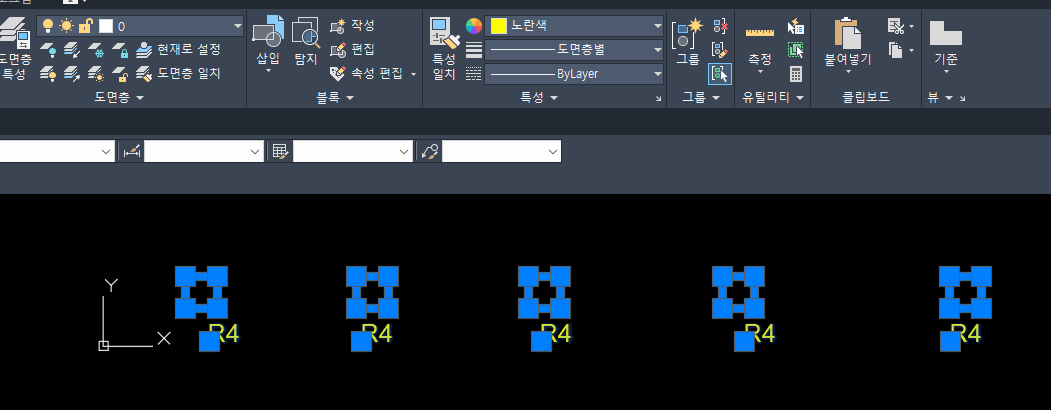

  2. Set CAD colors → pre-assign the text color and concrete-line color in the drawing

CAD 색상 설정

CAD 색상 설정

⚠️ Layer colors are not detected directly. If a color is set to By Layer, change it in the CAD drawing itself.

  1. Select family & type → choose the family to place
  2. Select placement level
  3. Run placement → success/failure counts are shown

⚠️ Matching: family name ↔ drawing label / family dimensions ↔ drawn line length (e.g. 500 x 500)

Auto Beam​

  • Auto-generate beams

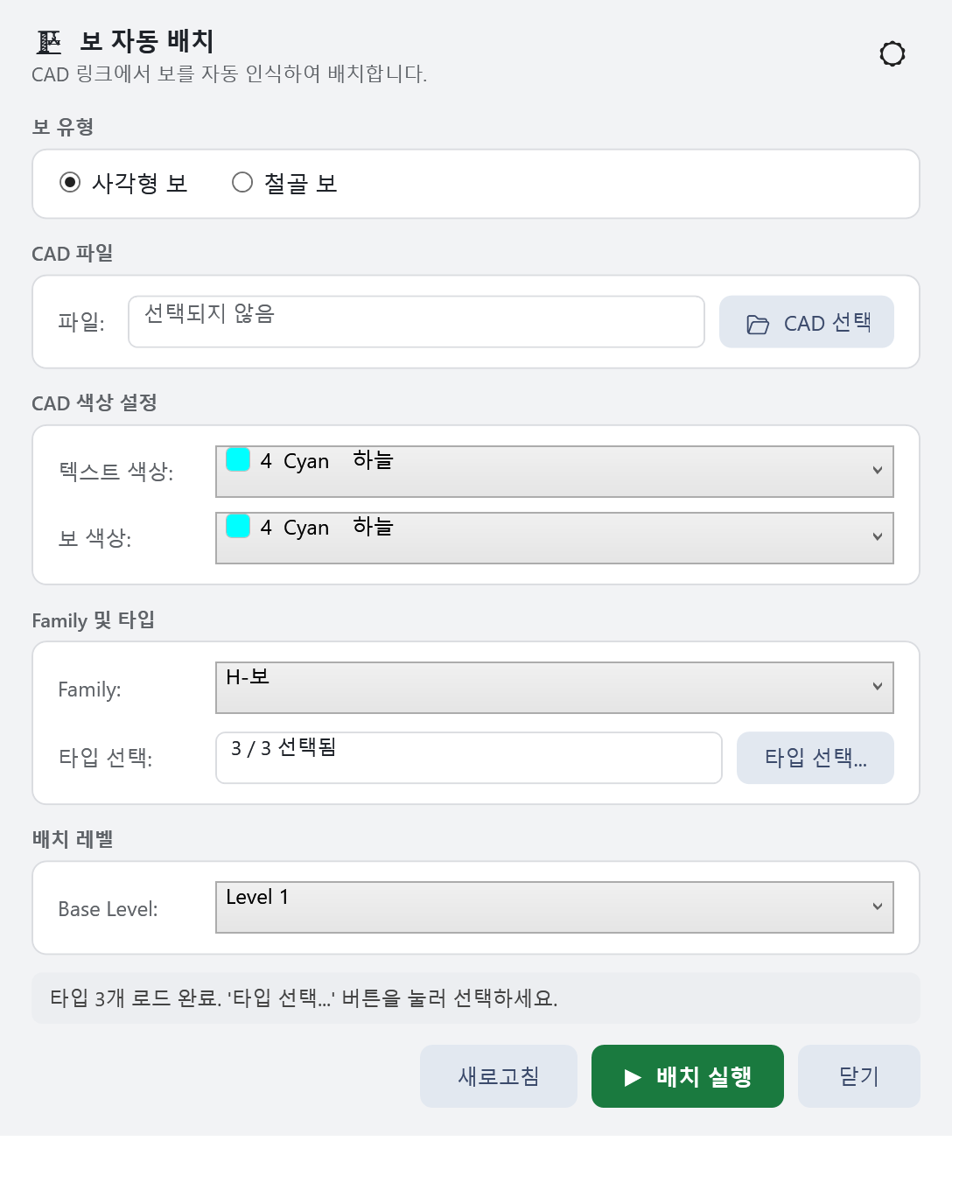

    Auto Beam

  1. Choose Rectangular beam / Steel beam
  2. Select a CAD file (Linked CAD only)
  3. Set CAD colors → pre-assign the text color and concrete-line color in the drawing

*See the Auto Column instructions

  1. Select family & type → choose the family to place
  2. Select placement level
  3. Run placement → success/failure counts are shown

Auto Slab​

  • Auto-generate floors

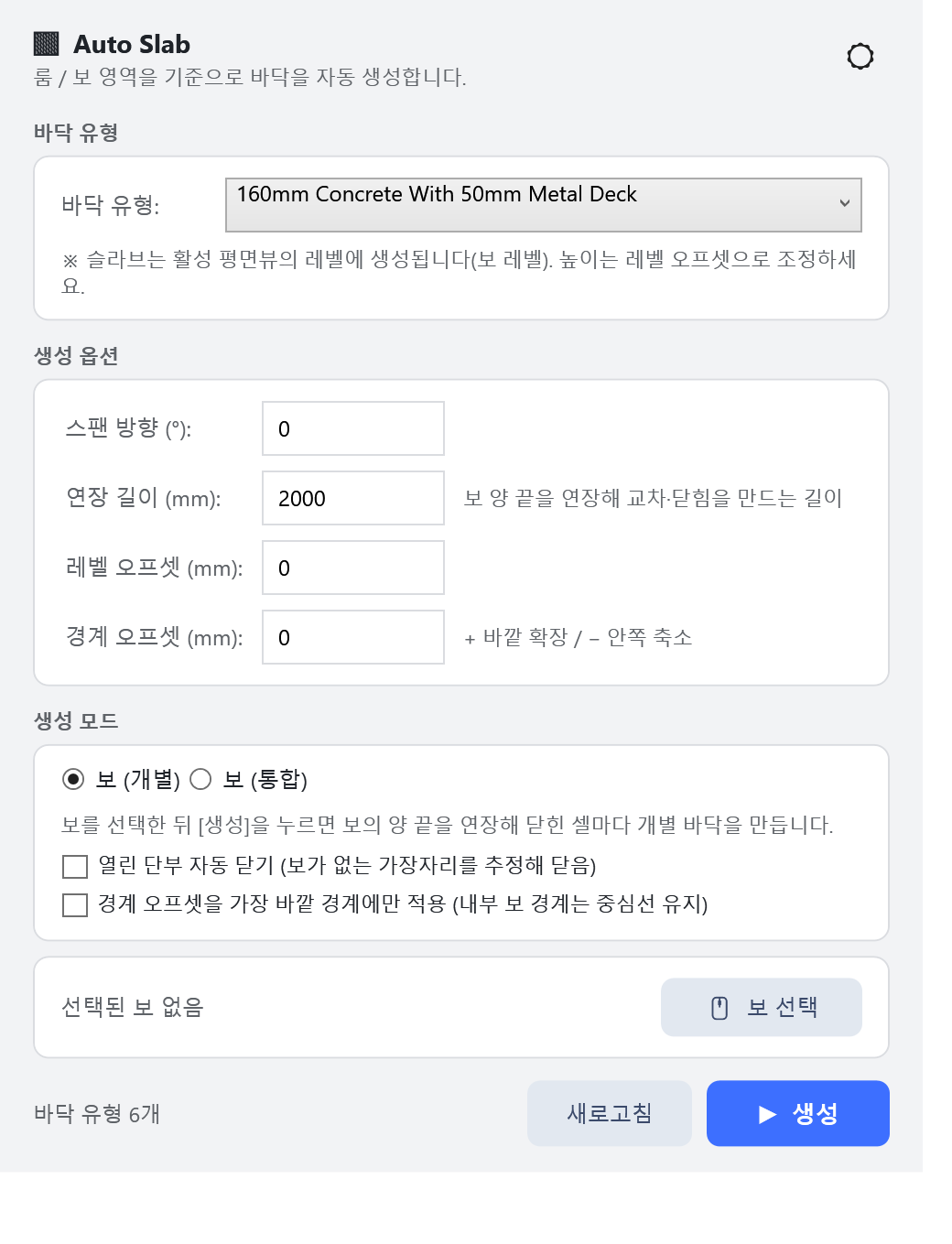

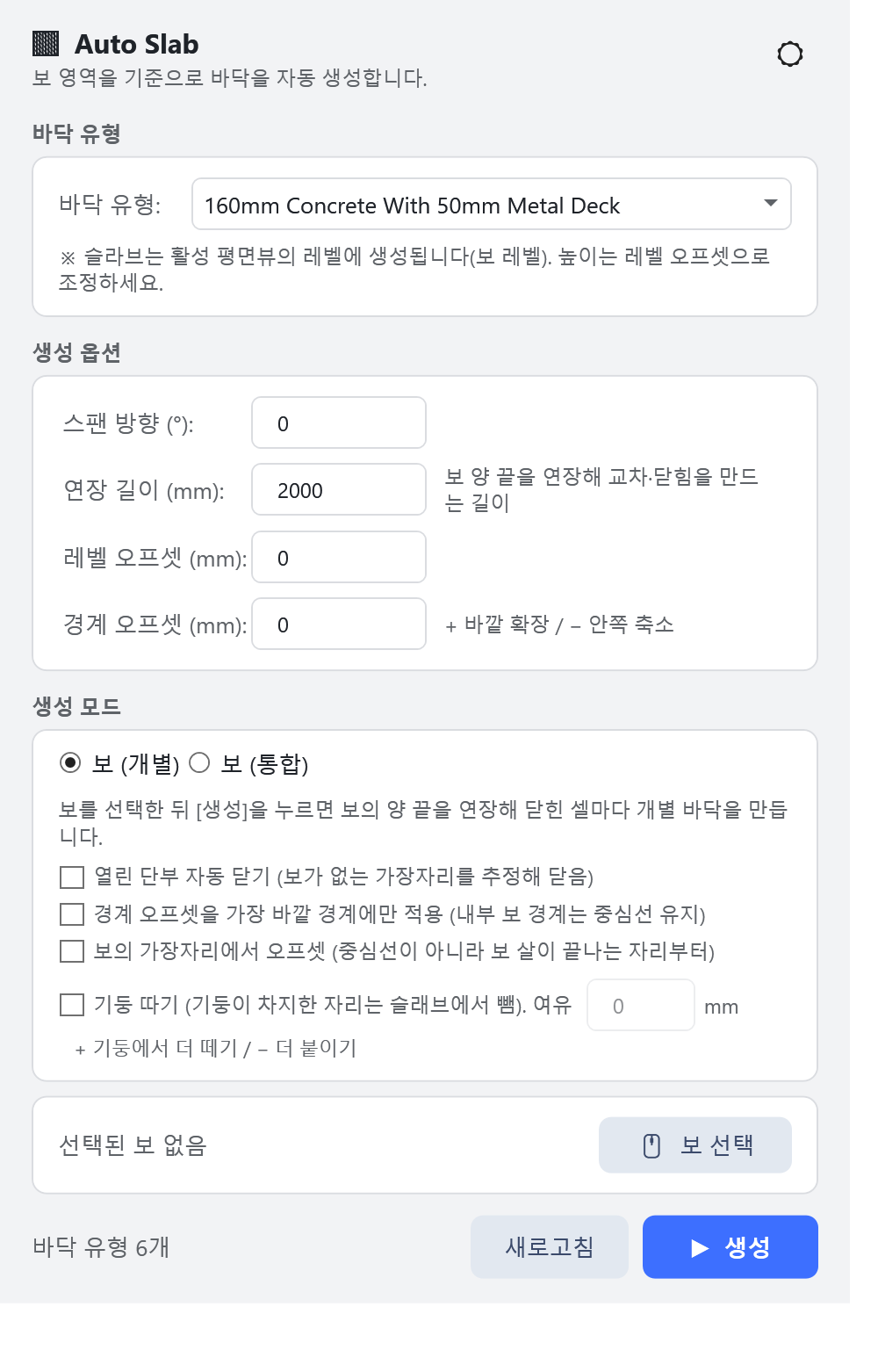

Auto Slab

  1. Choose the floor type
  2. Click Select Beams and pick beams — or pick beams first, then click Select Beams
  3. Click Create

*Beams (individual) → creates a slab inside each selected beam loop

*Beams (merged) → creates a slab along the outer boundary of the selected beams

Auto Wall - Structure​

  • Auto-generate structural walls

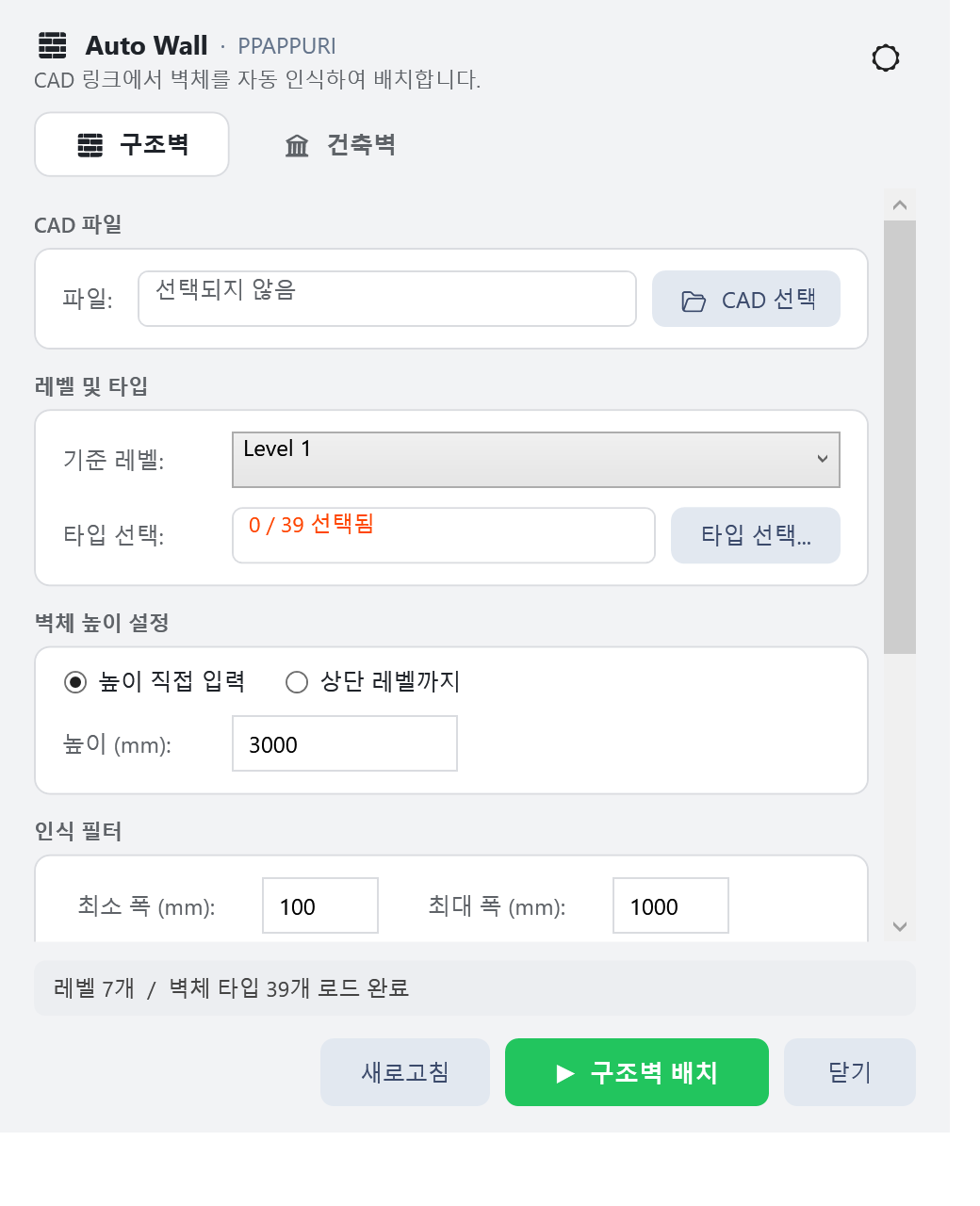

    Auto Wall - Structure

  1. Select a CAD file (Linked CAD only)
  2. Set level & height, select family & type → choose the family to place
  3. Recognition filter → keeps too-close and too-far wall lines from mixing
  4. Set CAD colors → pre-assign the text color and wall-line color in the drawing

*See the Auto Column instructions

  1. Run placement → success/failure counts are shown

Auto Wall - Architecture​

  • Auto-generate architectural walls

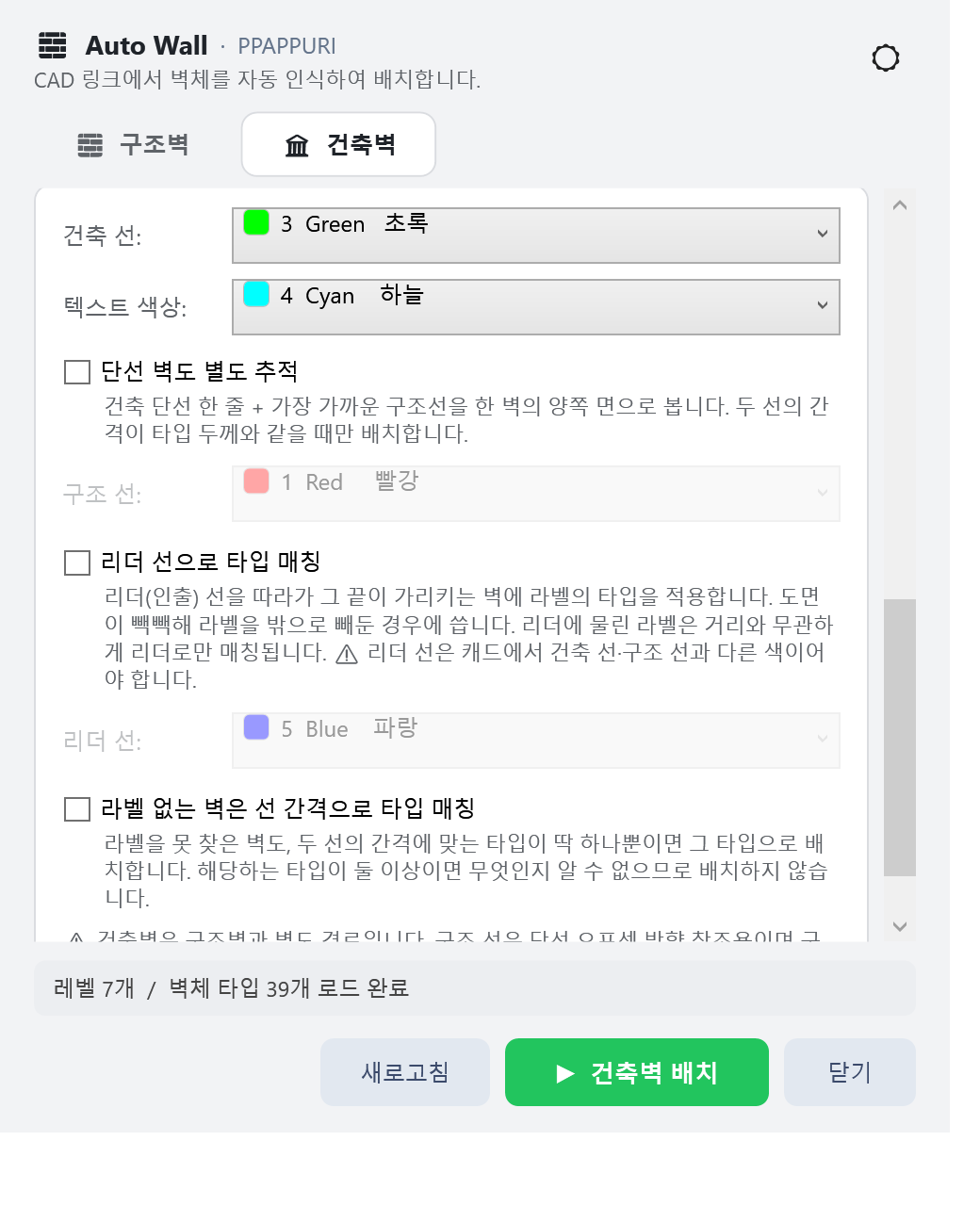

Auto Wall - Architecture

Auto Footing​

  • Auto-generate isolated footings

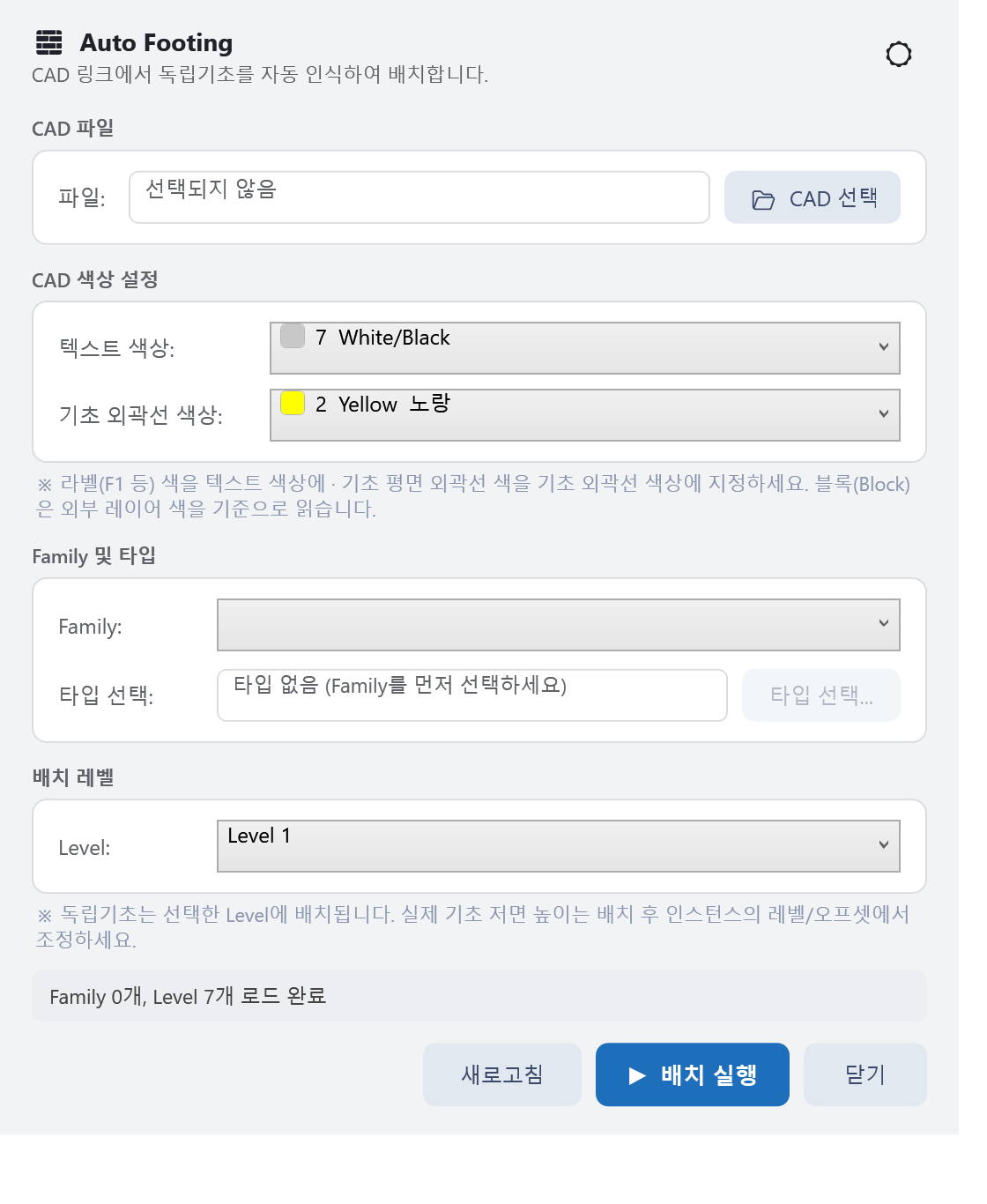

Auto Footing

  1. Select a CAD file (Linked CAD only)
  2. Set CAD colors

*See the Auto Column instructions

  1. Select family & type → choose the family to place
  2. Select placement level
  3. Run placement → success/failure counts are shown

Auto Contour​

  • Auto-generate terrain and surrounding building masses from shp files

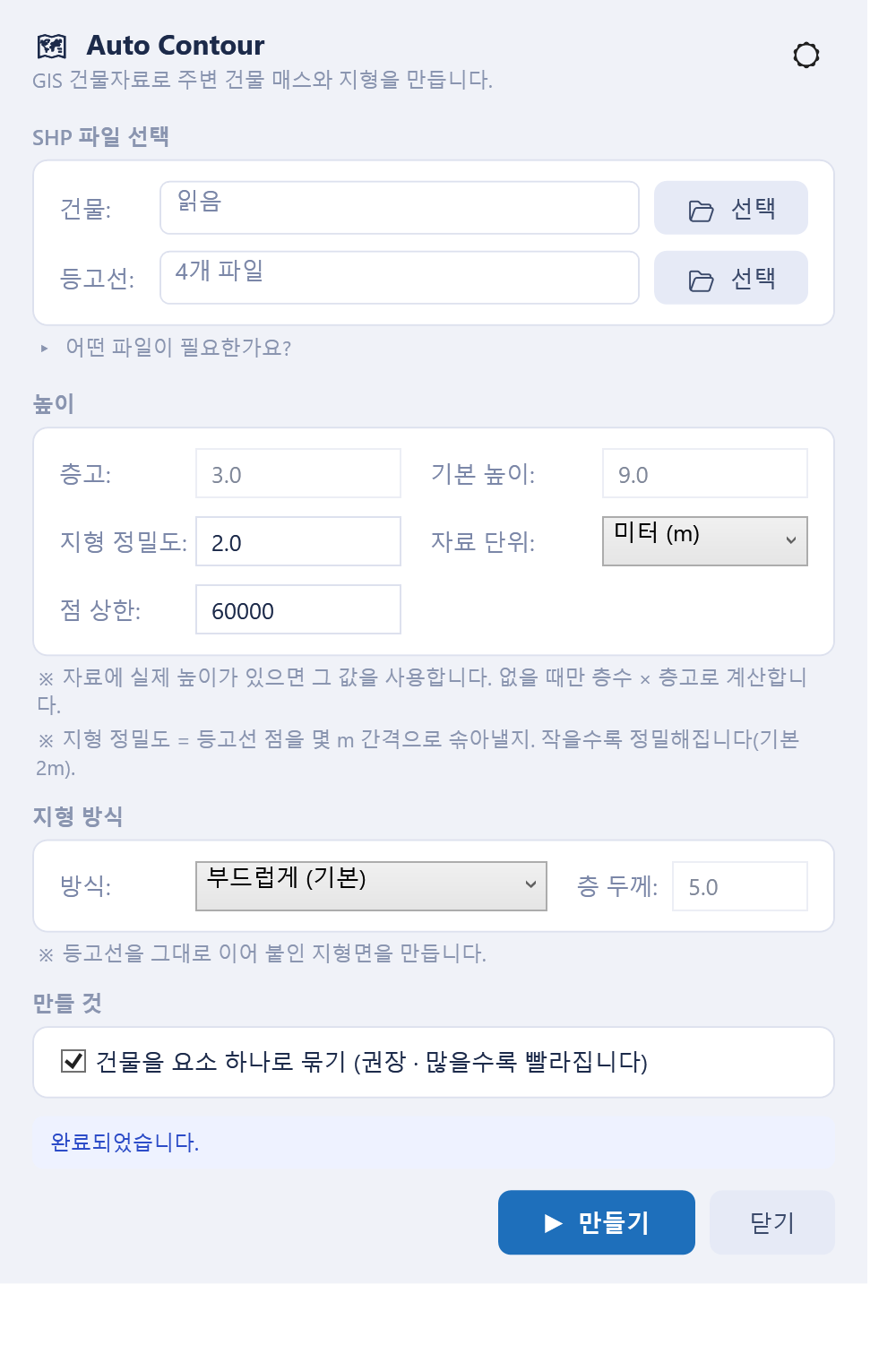

Auto Contour

  1. Select the building and contour shp files

*Building shp → VWorld spatial data download

*Contour shp → map.ngii.go.kr

  1. Enter terrain precision and the point limit
  2. Choose how the terrain is built

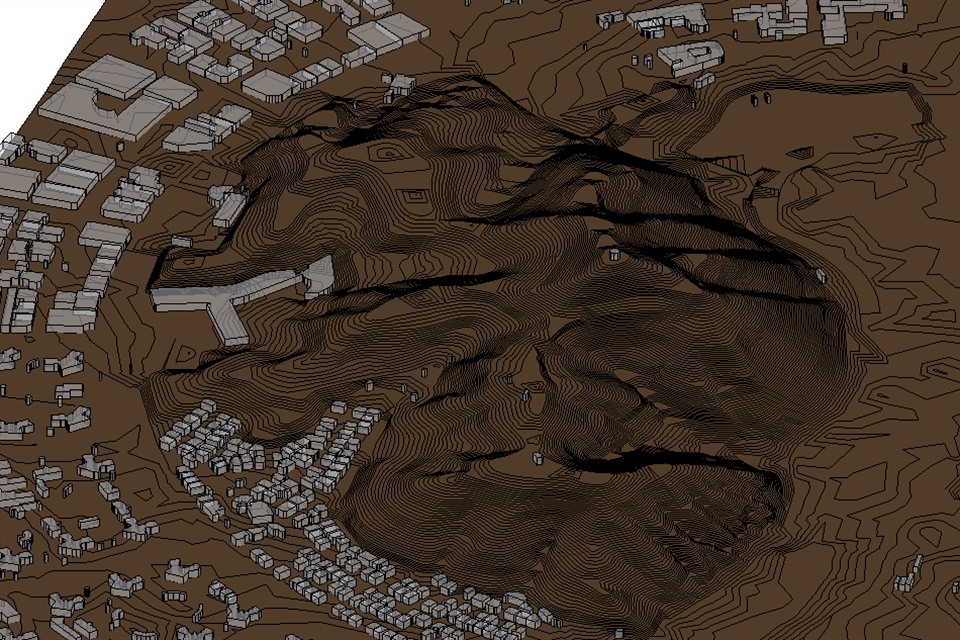

  • Smooth (default) → built as a Toposurface in Revit 2023 and earlier, or a Toposolid in 2024 and later

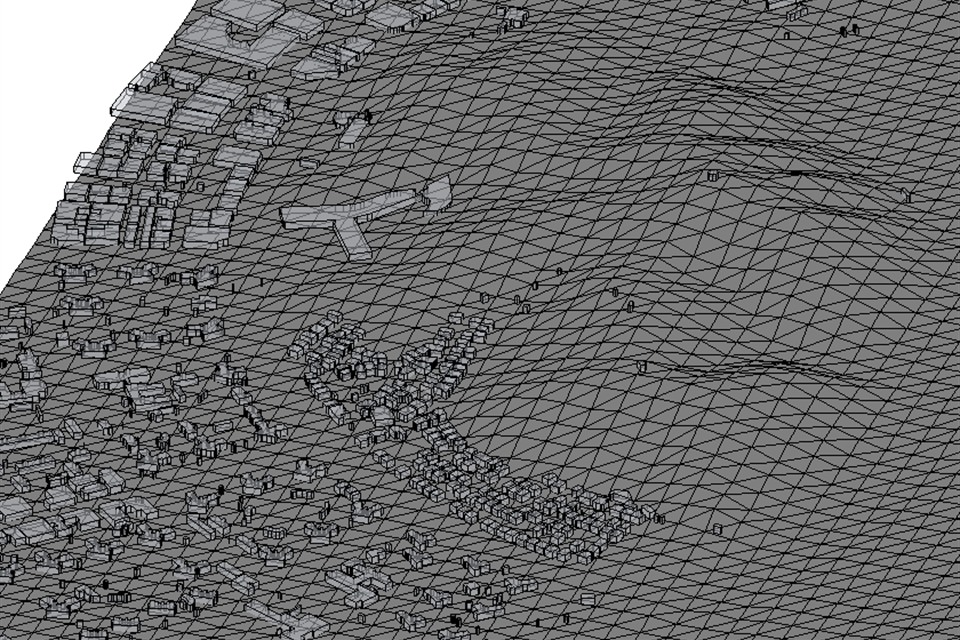

  • Smooth (mesh) → built as a General Model

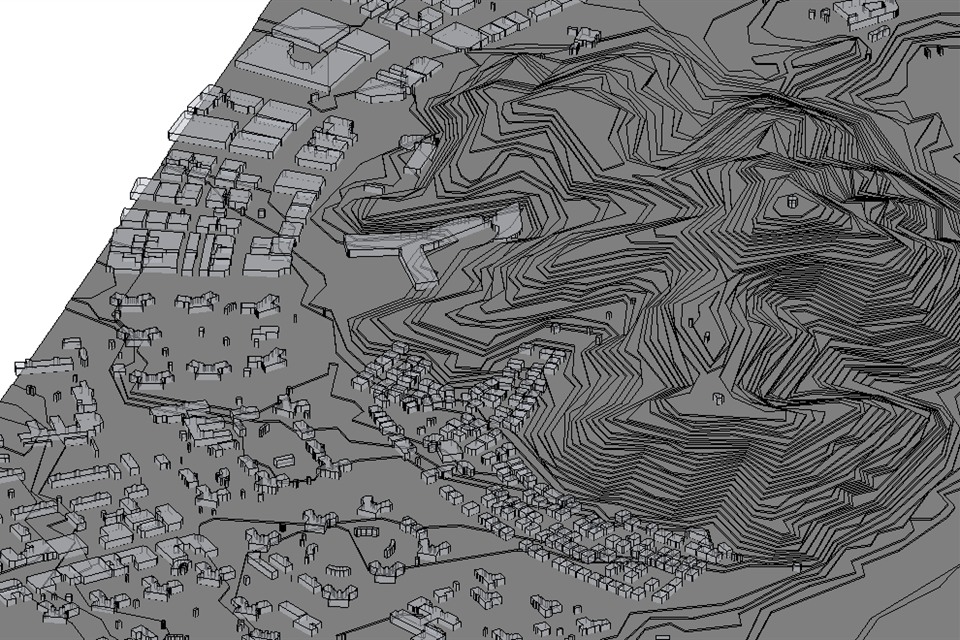

  • Stepped (stacked slabs) → built as a General Model

Smooth (default) Smooth (mesh) Stepped (stacked slabs)

*From the left — Smooth (default) · Smooth (mesh) · Stepped (stacked slabs)
